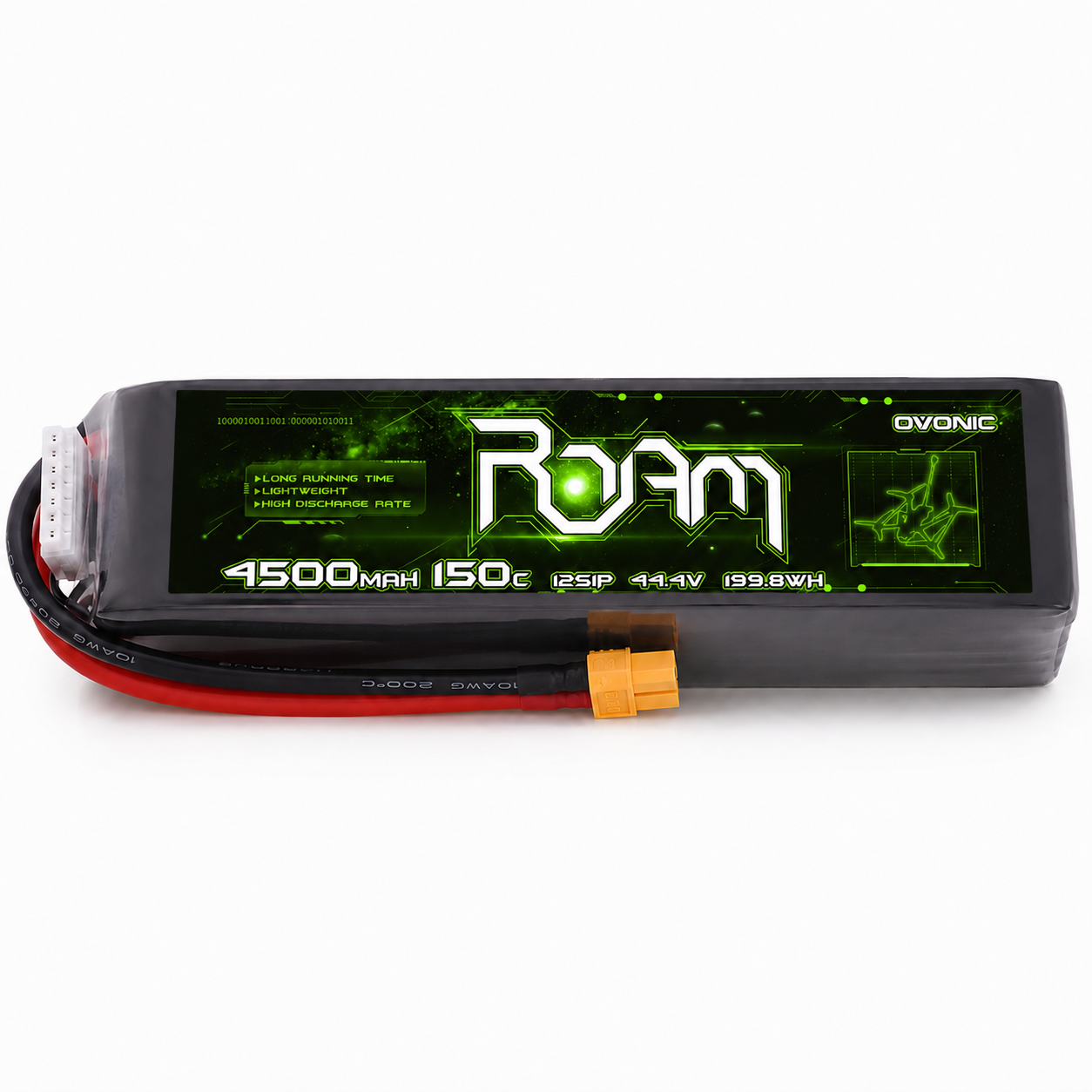

OVONIC ROMA 12S 4500mAh 44.4V 150C LiPo Battery Pack with XT90 Plug for Heavy Lift FPV Drone Cinema UAV 700-800 Heli

Overview

Heavy-lift cinematic drones, X8 FPV rigs, industrial UAVs, and high-voltage 3D helicopters require massive power delivery without thermal breakdown or electrical arcing. Standard dual 6S battery setups introduce wiring complexity and balance issues, while conventional high-voltage packs can suffer from extreme voltage drop, overheating, and mechanical stress during aggressive flight maneuvers.

OVONIC ROMA 12S 4500mAh 44.4V 150C LiPo Battery Pack is a single-pack 12S power platform engineered for maximum power density and structural durability. Delivering an incredible 150C continuous discharge rate (199.8Wh energy), this ROMA series battery features built-in aluminum protective side plates for enhanced impact resistance and heat dissipation. Equipped with an XT90 male plug, heavy-duty 10 AWG silicone wiring, and a dual-sided wire exit layout, it provides instantaneous, fade-free power for mission-critical aerial operations.

Primary Applications & Compatibility

This native 12S high-voltage, high-discharge battery is optimized for heavy-payload aerial platforms and high-voltage RC aircraft:

• Cinematic FPV & Heavy-Lift UAVs: The ideal single-pack 12S power supply for RED / Arri carrying X8 rigs, heavy-lifter FPV cinema drones, and agricultural/mapping UAVs requiring native 44.4V power.

• 700 to 800 Class 3D RC Helicopters: Delivers raw power and ultra-low internal resistance for extreme 3D aerobatic helicopters (e.g., SAB Goblin 700/770/800, Align T-Rex 700X/800E, XLPower Specter 700).

• Large Scale EDF Jets & Giant-Scale RC Aircraft: Supplies steady, high-amperage current for large-scale turbine-class EDF jets and high-voltage aerobatic planes.

Five Key Features

• Native 12S1P High-Voltage Configuration (44.4V / 199.8Wh): Eliminates complex dual 6S series adapters, reducing total wiring weight, resistance, and potential points of failure.

• Monster 150C Continuous Discharge Rate: Built for high-amp demand applications, delivering violent punch and instant throttle response with zero voltage sag under load.

• Aluminum Side Plate Armor & Thermal Dissipation: Integrated aluminum plates on both sides shield delicate lithium cells from crash impacts while distributing internal heat evenly.

• Heavy-Duty XT90 Male Plug with 10 AWG Wire: Factory-installed XT90 male connector with 120mm 10 AWG silicone wire handles heavy current demands smoothly and securely.

• Dual-Sided Wire Exit Layout: Designed with power and balance wires exiting from opposite sides to streamline tray installation, cable management, and center-of-gravity tuning.

Specification

• Brand: OVONIC (ROMA Series)

• Model / Part No.: O-150C-4500-12S1P-XT90

• Battery Type: Lithium Polymer (LiPo)

• Configuration: 44.4V / 12S1P / 12 Cells

• Capacity: 4500mAh

• Voltage: 44.4V (Nominal)

• Discharge Rate: 150C Continuous

• Energy: 199.8Wh

• Discharge Connector: XT90 Male Plug with 10 AWG Silicone Wire (120mm)

• Balance Connector: Reverse JST-XHR-13P with 22 AWG Silicone Wire (60mm)

• Protection & Finish: Dual Aluminum Side Plates, Black + Clear PVC Shrink Wrap

• Wire Layout: Dual-Sided Wire Exit

• Dimensions: 150.49 × 46.97 × 90.85 mm (±3mm tolerance) | 5.93 × 1.85 × 3.58 in (±0.12in tolerance)

• Net Weight: 1253.33 g (±20g tolerance) | 2.76 lbs

What's in the Box

• 1 × OVONIC ROMA 12S 4500mAh 44.4V 150C LiPo Battery with XT90 Male Plug

• 2 × OVONIC Brand Stickers

• 1 × User Manual

Safety & Maintenance Guidelines

• System Voltage Verification: Ensure your ESC, PDB, and motor setup are fully rated for 12S high voltage (44.4V nominal, 50.4V fully charged) prior to connection.

• Charging Protocol: Always use a 12S-compatible dedicated LiPo Balance Charger. Do not exceed a 1C charge rate (4.5A) and never charge above 4.20V per cell (50.4V total). Never leave charging packs unattended.

• Prevent Over-Discharge: Land immediately when individual cell voltage reaches 3.5V under load. Never allow cell voltage to drop below 3.2V per cell (38.4V total pack voltage) to prevent permanent chemical damage.

• Pre-Flight Inspection: Always check the aluminum side plates, shrink wrap, heavy 10 AWG lead jackets, and reverse JST-XHR-13P balance connector before each flight.

• Storage Maintenance: Store packs in a fireproof LiPo safety bag or container at a proper nominal storage charge of 3.80V–3.85V per cell in a cool, dry, and well-ventilated location.
