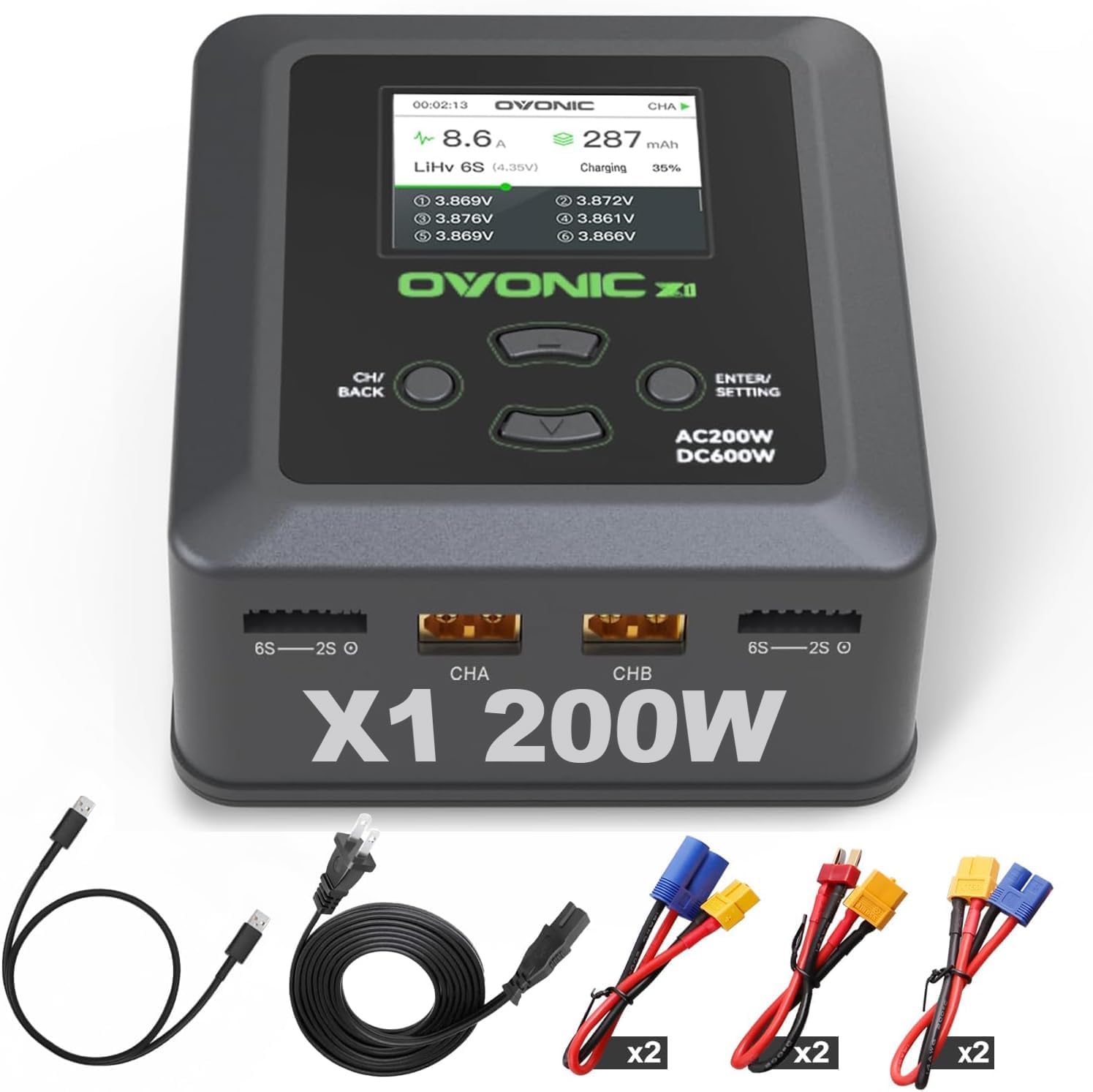

Ovonic X1 Dual Channel Lipo Battery Balance Charger is a compact and powerful device that allows charging up to two battery packs simultaneously with up to 15A of charge current.
Synchronous Dual Channel:

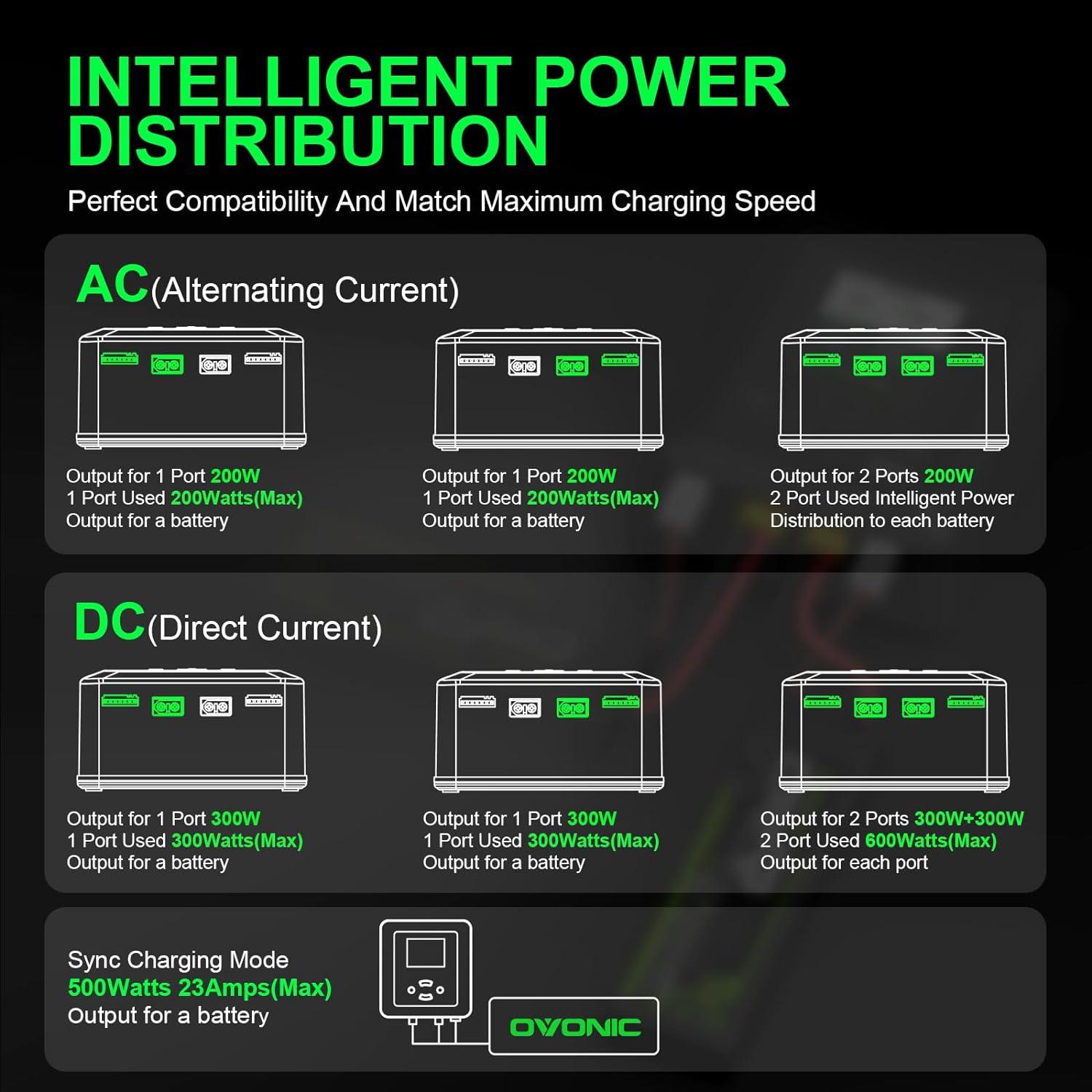

- Support dual-channel charging and discharging, DC port power supply supports maximum single-port 300W charging, and AC power supply supports intelligent distribution of total power. Smart High-Speed Processor delivers parameter interference to each port.

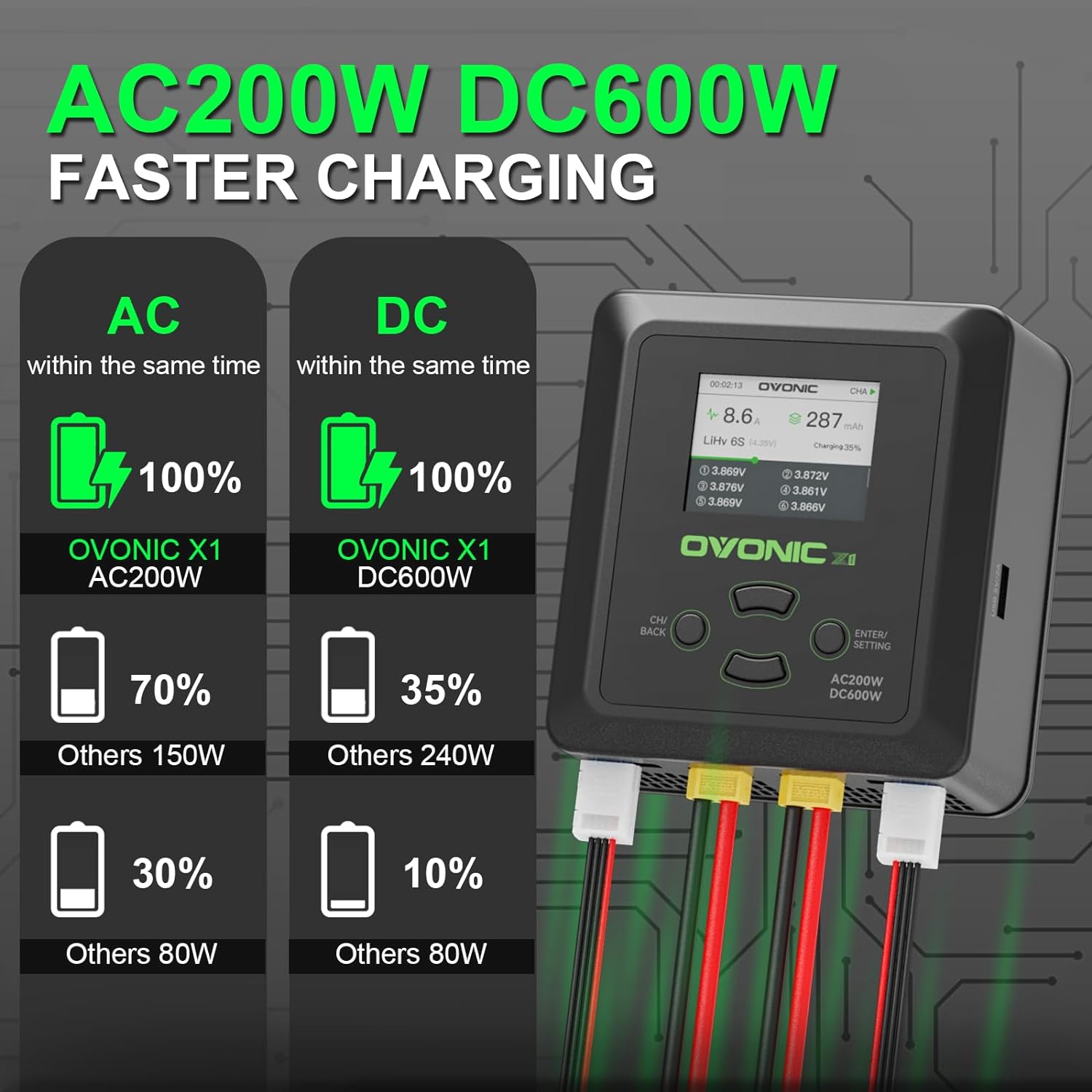

- High Power Charging rate up to 15A, worldwide 100V-240V voltage versatility, AC 200 Watts, DC 600 Watts. Suitable for any RC Car / FPV / Aircraft / Heli / Drone / UAV Batteries.
- It not only comes with features like balance charge, fast charge, storage charge, cyclic charge & discharge, 20*2 groups of memorized datas, but also is designed with Battery meter,Lithium battery internal resistance checking, Adjustable digital DC power etc, which makes it super convenient! 7 working modes Include charge, discharge, balance, storage, ExtDischarge, SyncCharging, digital power supply.
Support Various Batteries:
- The DC charger can be used with 1S to 6S LiHV/LiPo, 1 to 16 cell NiMH or 1S to 10S batteries and it works with 7VDC to 28VDC input. A powerful discharge function allows for up to 3A of discharge current or 15A when used in the Recycle mode.
Max Safety and Smart Protection:
- Advanced safety features and UL94-V0 Flame Retardant Grade. Low input voltage limit, automatic charge current limit, Delta-peak sensitivity, capacity limit, processing time limit,temperature threshold.
Bulit-in DC Power Source:
- SYNC charge combines the output of both channels of the charger into one big high power CHARGING MONSTER! Larger batteries can be charged quickly using SYNC charge mode, which support charging phone!
Developed just for smart charging:
- 2.4inch IPS Screen, Stylish and simple UI design, optimized display information, makes setup & working status clearer to read, Quick & simple function menu design, reduces operating steps up to 80%, supports online update with PC, optimizes operating system, and improves user experience constantly.
- Support charging 2pcs of 1-6S LiPO/LiHV batteries.
- Small & Lightweight Portable Design with 2.4inch wide-view IPS Display.
- Charging current is adjustable.
- Synchronous output, 2-in-1 Fast-charging
- Built-in DC power source for different devices.
- 7 working modes Include charge, discharge, balance, storage, ExtDischarge, SyncCharging, digital power supply.
- Multiple protection function: over-voltage, over-current, reverse polarity, and over-temperature protection.
- Advanced safety features, UL94-V0 Flame Retardant Grade.
- Protection of Short circuit / Overcurrent / Overcharge / Overvoltage.
- Controlled heat dissipation system.
||2.4" IPS LCD
||AC 100-240V / DC 7-30V
||Max. 1.2A / Cell x2
|Max. Charging Power
||AC 200W (Combined) / DC 300W x2
|Max. Discharging Power
||15W x2 (Output Port 6W x2; Balance Port 9W x2)
|Balance Cell Count
|Supported Battery Type
||LiPo / Li-ion / LiHV / LiFe 1-6S ; NiMH 1-16S
|DC Input Connector

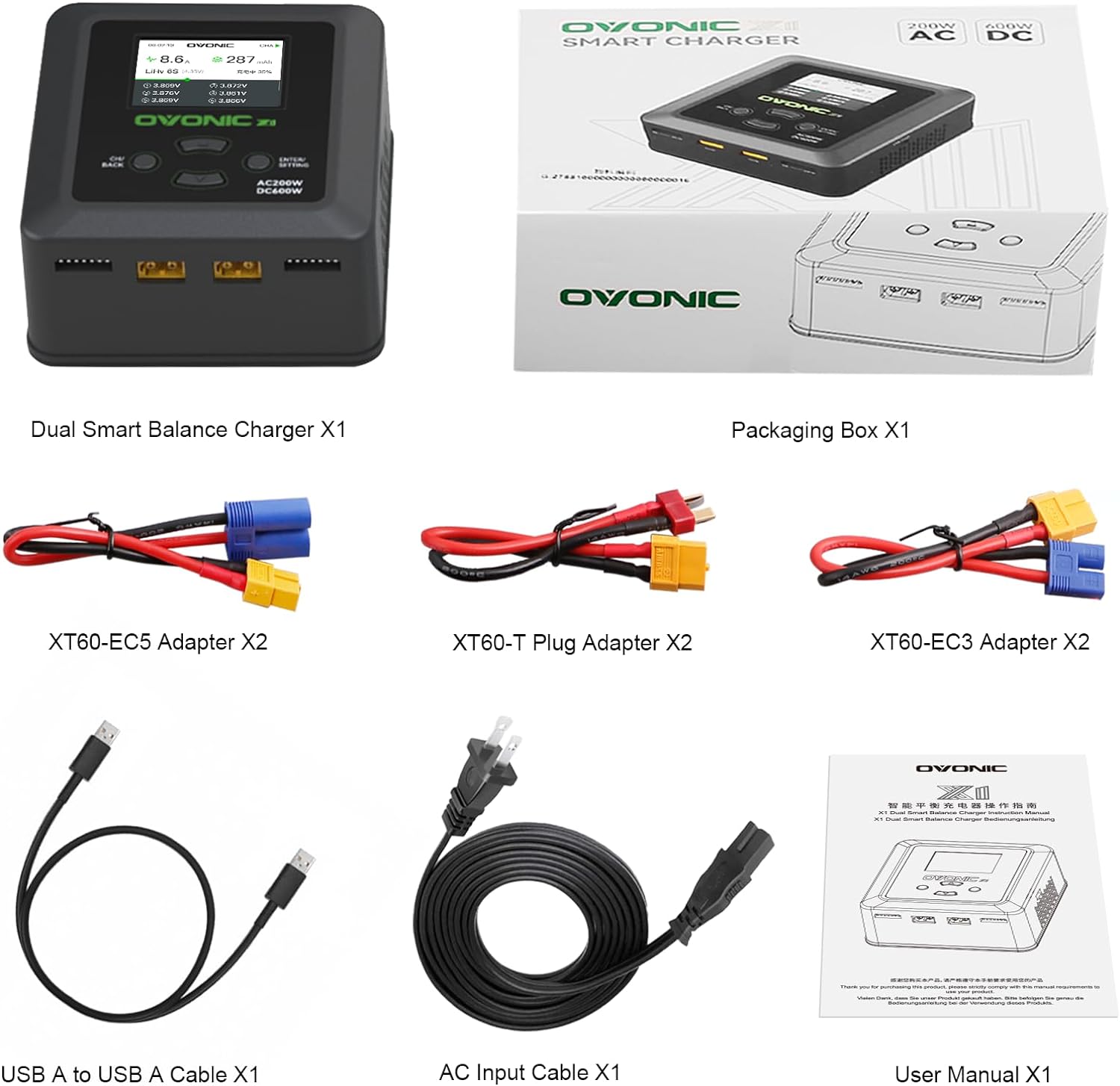

What in the Box?
- 1X OVONIC X1 RC battery balance charger
- 1X AC Input Cable
- 1X USB Cable
- 2X XT60-T plug adapter
- 2X XT60-EC3 adapter
- 2X XT60-EC5 adapter
- 1X User Manual
Note: The Plug for EU Customers is in EU Standard, and for USA Customers is in US Standard!
Downward file: User's Guide
