![[4 Packs] Ovonic 120C 6S 1300mAh 22.2V LiPo Battery Pack for FPV Racing - XT60 Plug - Ampow](http://www.ampow.com/cdn/shop/products/O-120C-1300-6S1P-XT60-4P_940x.jpg?v=1660985528)

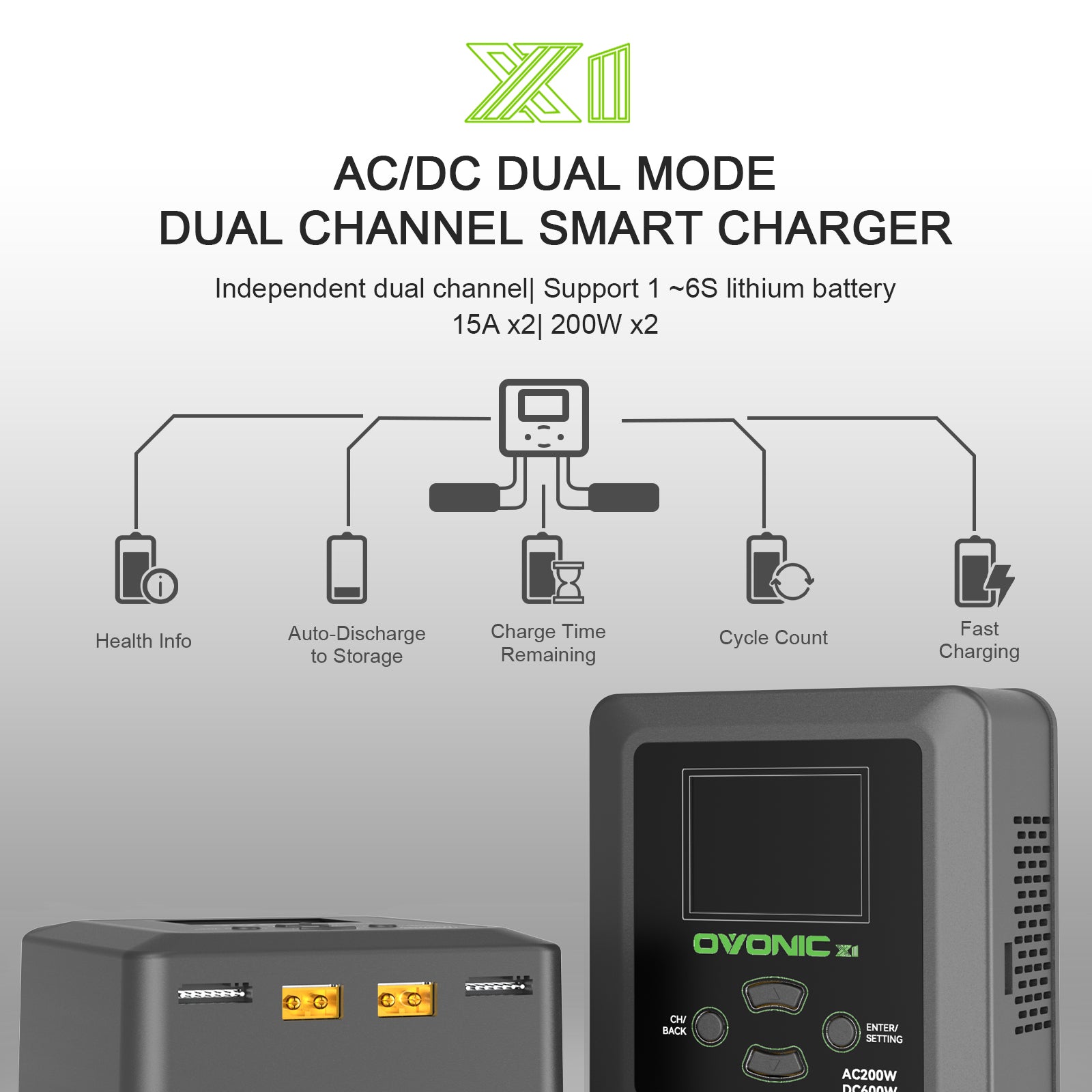

Support Sync Charging Mode: DUAL OUTPUT, Normal 500WMax to 700W,fast charge from 0%-80% in few mintues200W 15A Faster Smart Lipo Charger ; 15W *2 (Main port 6W *2, Balanced port 9W *2)
Support Various Batteries: Cell Type:3.7 V to 22.2 V(1s-6s) LiIon/LiPo/LiFe1S-6S, 3.6-18V(1s-16s) NiMH,Smart RC Batteryg Voltage】200W 15A Faster Smart Lipo Charger ; 15W *2 (Main port 6W *2, Balanced port 9W *2)
Multi-functional Charger: Variety of modes: Balance charge, normal charge, fast charge, Storage charge, Discharge, Cycling, and Battery Meter.atteries】Cell Type:3.7 V to 22.2 V(1s-6s) LiIon/LiPo/LiFe1S-6S, 3.6-18V(1s-16s) NiMH,Smart RC Battery
Accessories included: AC Input Cable X1 Balance adapter X1 XT60-T plug adapter X1 XT60-EC3 adapter X1 XT60-EC5 adapter X1; Variety of modes: Balance charge, normal charge, fast charge, Storage charge, Discharge, Cycling, and Battery Meter.
Download:
User Manual ⬇️
Firmware OVONIC_x1_V1.0.7 ⬇️
Firmware OVONIC_x1_V1.0.5 ⬇️
Specification:
| Display | 2.4" IPS LCD |
| Channels | 2 |
| Input Voltage | AC 100-240V / DC 7-30V |
| Output Voltage | DC 1-30V |
| Charging Current | 0.1-15A x2 |
| Balance Current | Max. 1.2A / Cell x2 |
| Voltage Deviation | Standard ±10mV |
| Discharge Current | 0.1-3.0A x2 |
| Max. Charging Power | AC 200W (Combined) / DC 300W x2 |
| Max. Discharging Power | 15W x2 (Output Port 6W x2; Balance Port 9W x2) |
| Balance Cell Count | 1-6S |
| Supported Battery Type | LiPo / Li-ion / LiHV / LiFe 1-6S ; NiMH 1-16S |
| Operating Temperature | 0-65°C |
| DC Input Connector | XT60PW-M |
| Output Connector | XT60PW-M |
| Dimensions | 129x120x63mm |
| Weight | Approx. 530g |
What in the Box?

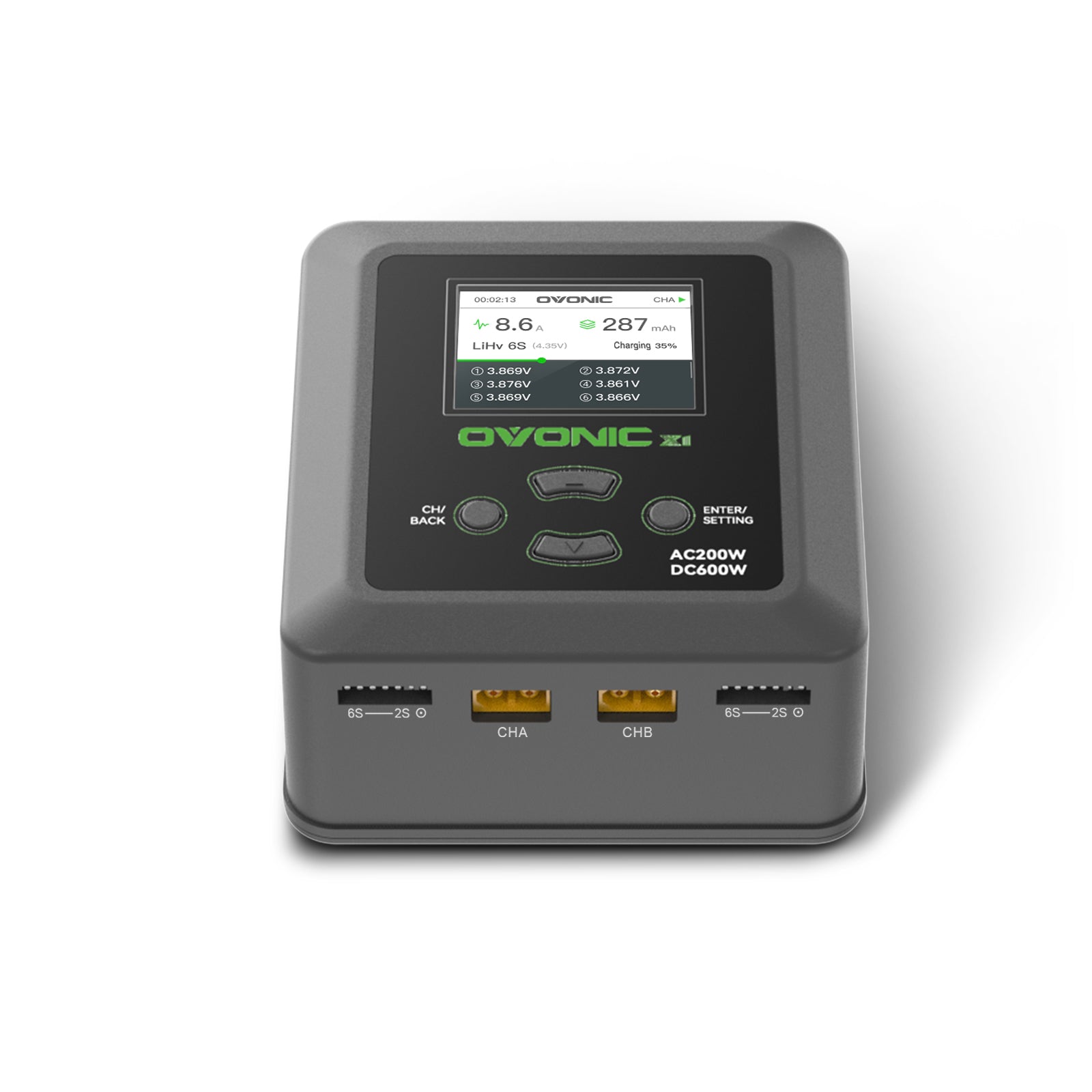

1X OVONIC X1 RC battery balance charger
1X AC Input Cable
1X USB Cable
2X XT60-T plug adapter
2X XT60-EC3 adapter
2X XT60-EC5 adapter
1X User Manual
Note: The Plug for EU Customers is in EU Standard, and for USA Customers is in US Standard!
Delivery Areas
US Warehouse
Carrier: USPS
Delivery to: Continental US (excluding islands and remote areas)
EU Warehouse
Carriers: DHL, DPD, GLS
Delivery Areas:
- DHL - Germany:
- DHL_EU1: BE, LU, SK, CZ, HU, AT, NL, DK, FR, IE, IT, PL, SI, ES, FI, LV, LT, SE, BG, EE, GR, MC, PT, RO, HR, MT, CY
- DHL_EU2: AD, IS, LI, MK, NO, CH, UA, VA, SM, KZ, TR, GB
- DPD International: FR, IT, ES, PL, AT, BE, NL, IE, PT, CZ, MC, LU, DK, HU, SK, SI, SE, EE, FI, HR, LT, LV
- GLS International: BE, LU, NL, AT, DK, FR, IT, CZ, PL, HU, EE, LV, LT, PT, SE, ES, SK, FI, IE, BG, RO, GR, IS, MT
E
Super
H
Impressed by the performance of this product,😍 it saved batteries that I thought were dead 💀
W
Ovonic X1 Dual Channel LiPo Charger AC200W/DC300Wx2 Lipo Battery Balance Charger
D
I like the fact that I can do two operations on two different batteries at the same time. It works well with a variety of batteries. And it can be used at the field if you take along a larger battery to charge your smaller ones.
A
Very good charger. Firmware upgrade suggestion: The cooling fan noise could be better if the fan continuously spins at lower RPM, instead of full RPM from time to time.
