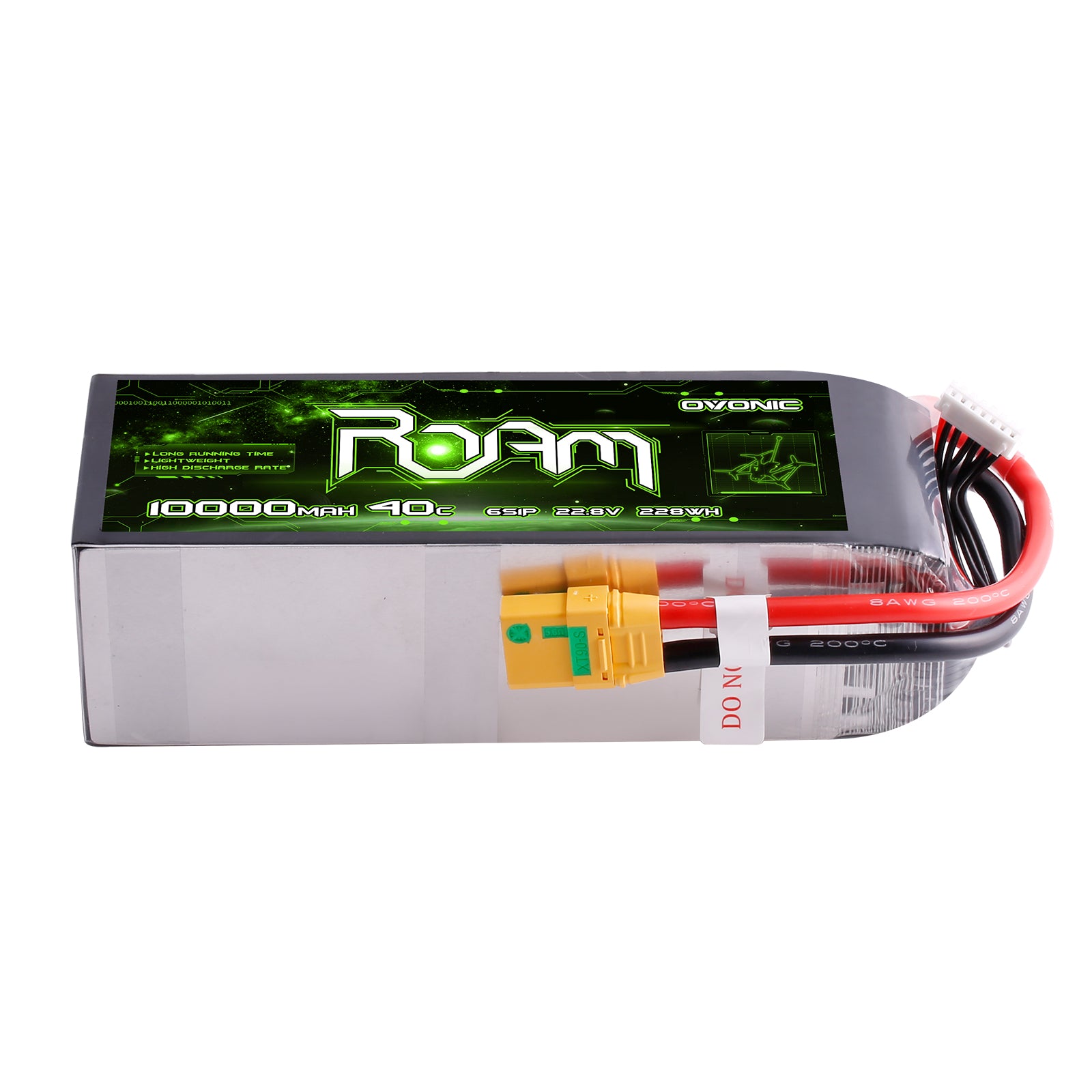

Ovonic ROAM 22.8V 10000mAh 40C 6S1P LiHV Battery Pack with XT90S-F Anti-Spark Plug for Aerial Mapping, Surveying, and Compact Industrial Drones

Overview

Need a lightweight power source to extend the mapping grid of your aerial surveying drone? The Ovonic ROAM 22.8V 10000mAh 40C 6S LiHV battery pack optimizes your aircraft's power-to-weight ratio perfectly. Combining a compact footprint with high-density LiHV chemistry, it delivers flat voltage stability and reliable throttle tracking. Built with laser-welded cell tabs and internal aluminum plates, this pack provides professional UAV operators with steady flight times without forcing them to deal with bloated setups or premature voltage lag.

Application

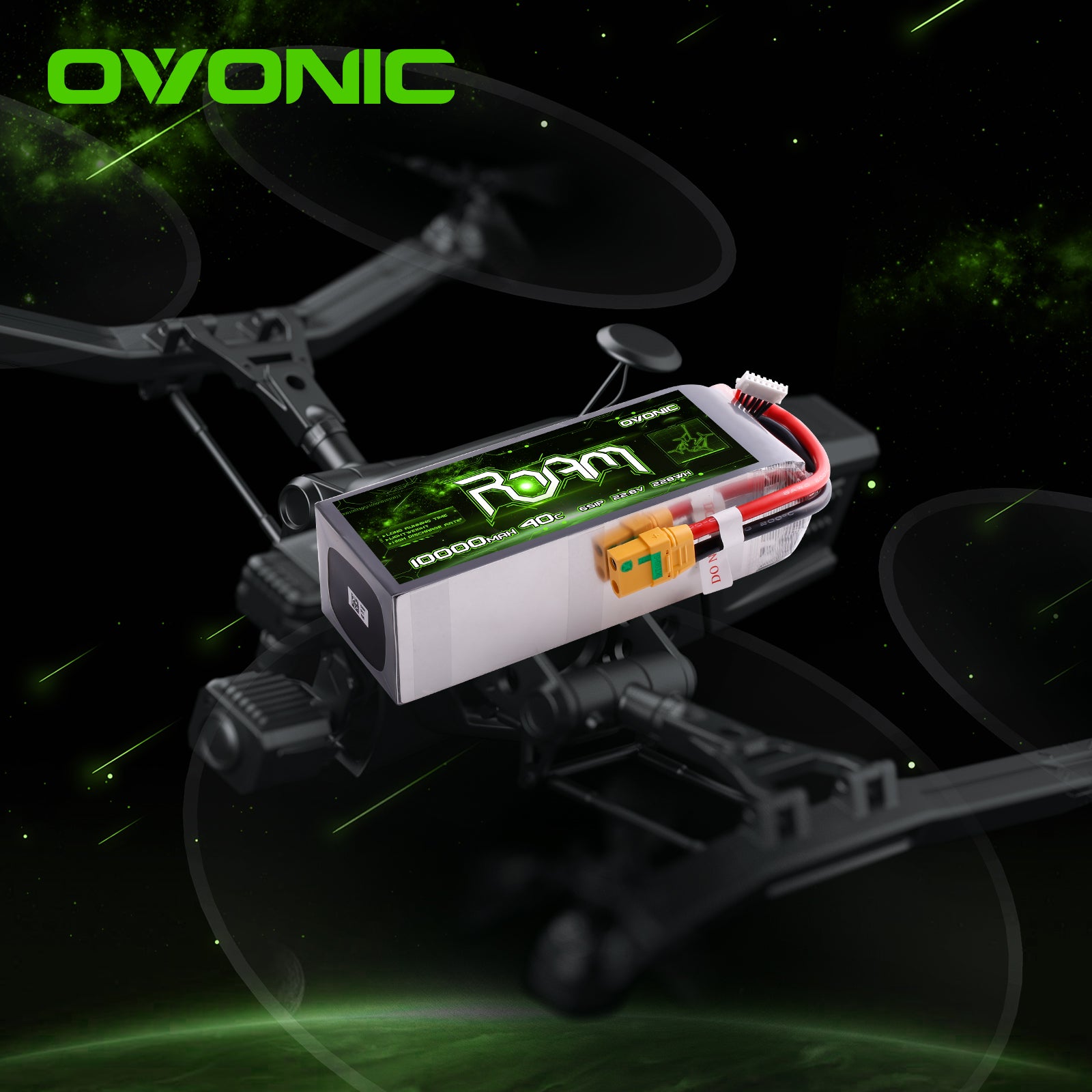

Designed for high-precision, mid-sized commercial multi-rotors that require a lean profile and consistent voltage tracking during automated flight paths:

• Aerial Survey & Mapping Drones: Extends flight boundaries for automated orthophoto and 3D terrain mapping missions with light camera setups.

• Compact Industrial UAVs: Ideal for localized security patrols, inspection quadcopters, and custom 6S multi-rotors requiring clean XT90S connections.

Key Features

• Optimized Power-to-Weight Casing: At just 1360g, it maximizes your drone's energy density, allowing crisper flight handling and tighter tracking along pre-programmed flight grids.

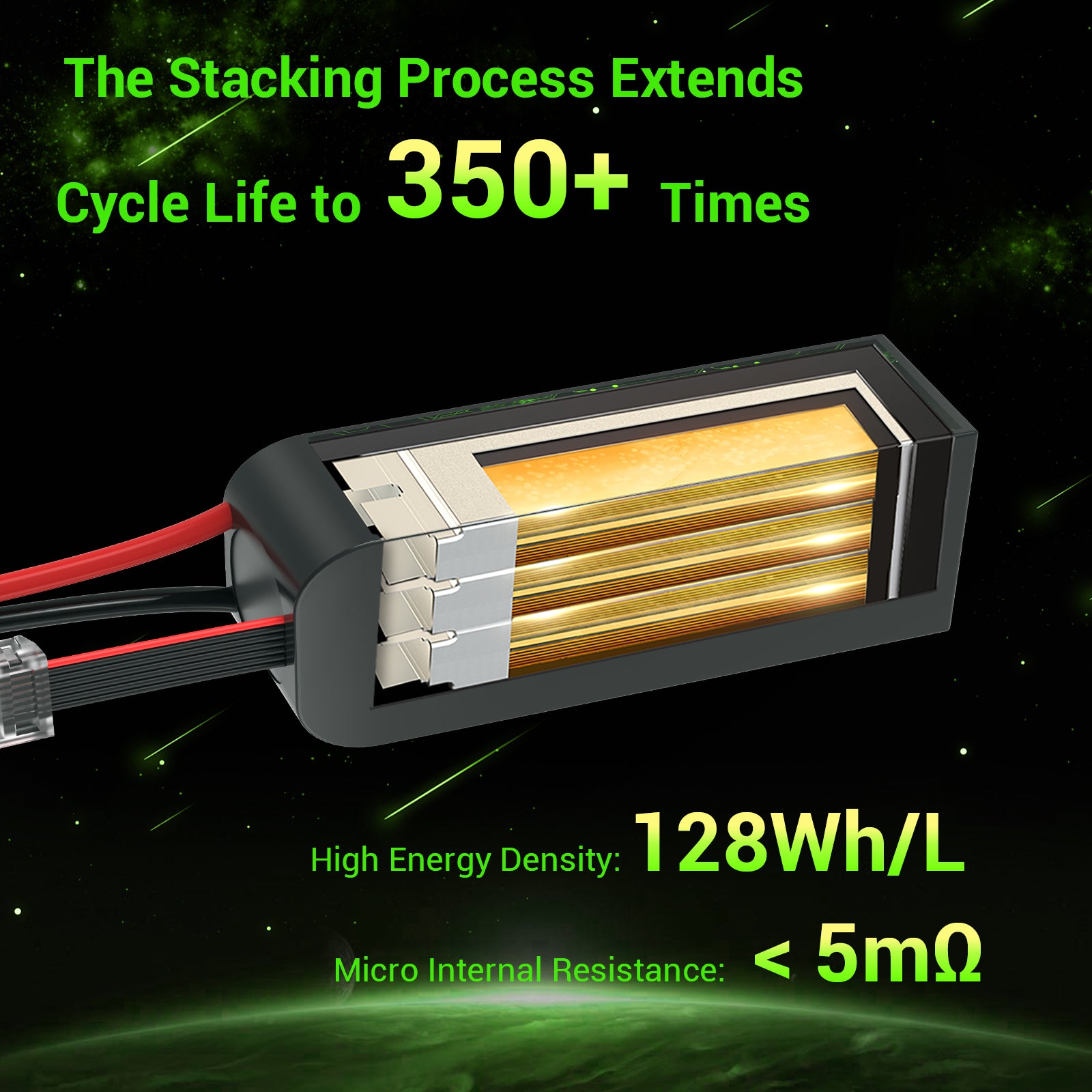

• Laser-Welded Reliability: Cell connections utilize advanced automated laser welding, lowering internal resistance and eliminating cold solder joints that break under high multi-rotor vibration.

• XT90S-F Anti-Spark Protection: Equipped with an authentic yellow anti-spark plug to prevent dangerous arcing upon connection, protecting your expensive onboard GPS and avionics systems.

• Sustained LiHV Power Platform: The 22.8V system stays higher for longer during flights, preventing mushy control surfaces or late-stage altitude jitter when returning to base.

• Symmetrical Dual-Side Wiring: Thick 8 AWG silicone wires (150mm) and a JST-XHR-7P reverse balance lead (100mm) exit cleanly from opposing sides for zero-bind integration in small battery compartments.

Technical Specifications

• Brand: Ovonic (ROAM Commercial Drone Series)

• Chemistry: High-Voltage Lithium Polymer (LiHV)

• Configuration: 22.8V / 6S1P / 6 Cells

• Capacity: 10000mAh (228WH)

• Discharge Rate: 40C Continuous

• Net Weight (±30g): 1360g / 3.00 lbs

• Dimensions (±2mm): 177 x 66 x 58 mm / 6.97 x 2.60 x 2.28 inches (L x W x H)

• Connector Type: XT90S-F Anti-Spark Plug

• Balance Connector: JST-XHR-7P Reverse Plug

• Wire Gauge: 8 AWG Power Wire / 22 AWG Balance Wire

• Pack Structure: Internal Aluminum Cooling Plates + External PVC Shield

What's in the Box

• 1 x Ovonic ROAM 22.8V 10000mAh 40C 6S LiHV Battery Pack

• 1 x User Manual & Safety Guide

Charging & Safety Warnings

• LiHV Charger Settings: Your smart balance charger must be explicitly set to "LiHV" mode with a cut-off voltage of 4.35V per cell. Never use standard LiPo profiles.

• Operational Discharge Limit: To preserve long-term battery health and aircraft safety, configure your telemetry low-voltage alarms to trigger no lower than 3.3V per cell under load.

• Storage Requirements: If leaving the pack idle for more than 48 hours, discharge or charge it to a stable storage voltage of 3.80V–3.85V per cell and store it in a cool, dry place inside a fireproof containment box.
