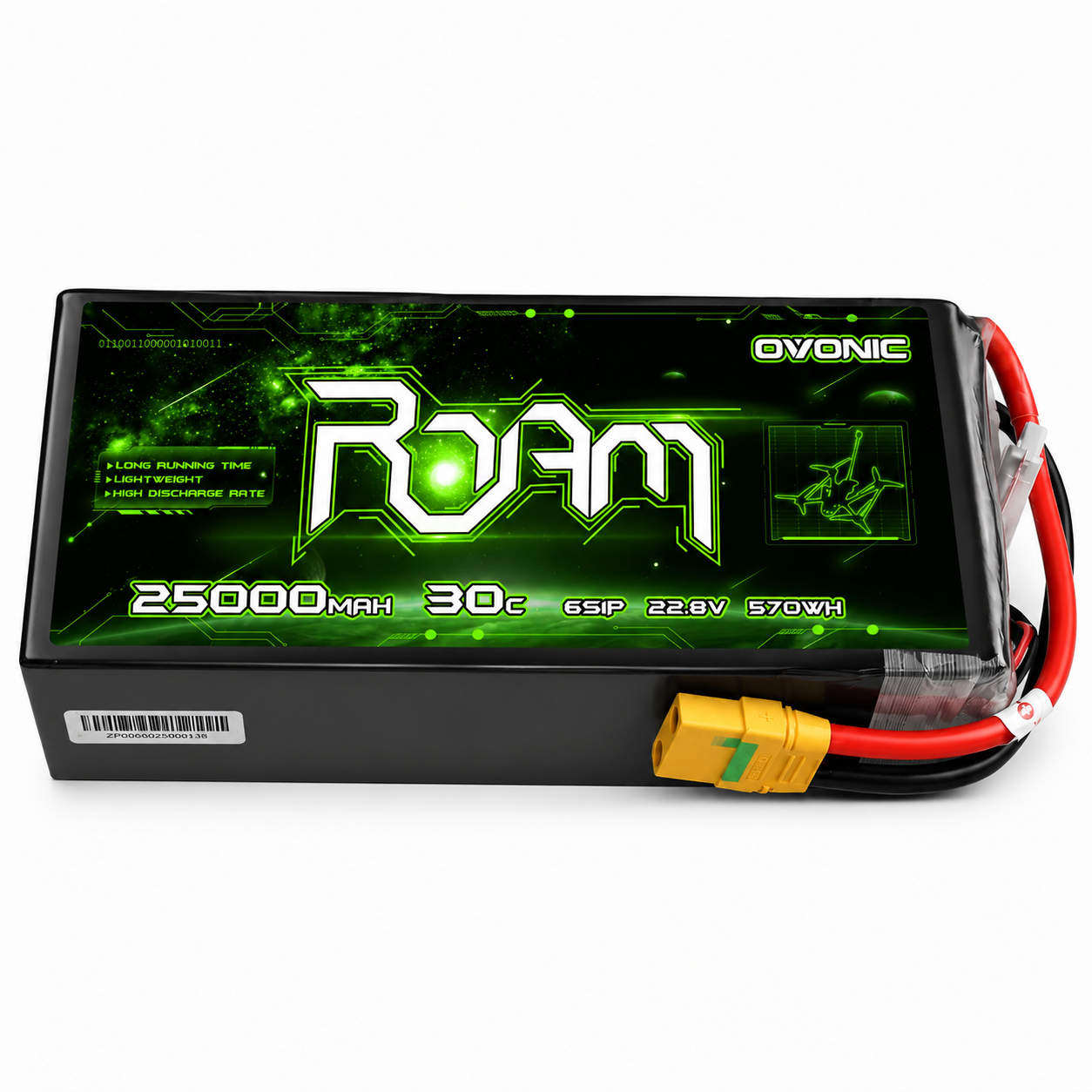

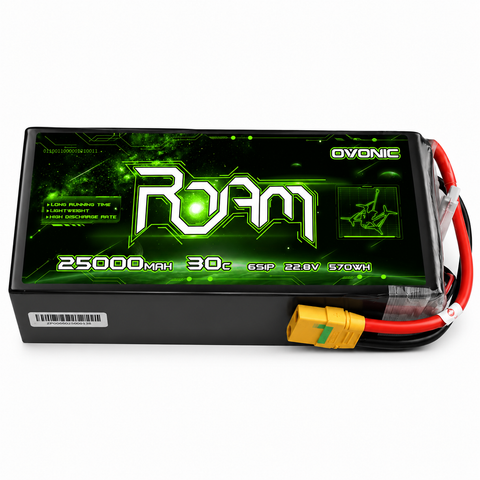

Ovonic ROAM 22.8V 25000mAh 30C 6S1P LiHV Battery Pack with XT90S-F Anti-Spark Connector for Long-Range Industrial Surveillance and Heavy UAVs

Overview

Tired of cutting your long-range industrial inspection missions short because of early battery voltage drop? The Ovonic ROAM 22.8V 25000mAh 30C 6S LiHV pack is designed specifically to push your flight time boundaries. Utilizing high-density chemistry, it packs 570WH of raw energy to sustain extended hovering and cruising under heavy payloads. Built with advanced laser welding, internal cooling plates, and a flush wire exit, this battery offers commercial drone pilots predictable, long-lasting power without the threat of heat-induced cell swelling.

Application

Engineered for ultra-long runtime and steady cruising on heavy commercial UAV platforms where sustained endurance is critical:

• Long-Range Industrial Surveillance: Maximizes flight times for infrastructure tracking, oil & gas pipeline inspections, and forestry monitoring.

• Heavy-Lift Commercial Hexacopters: Provides deep energy reserves for multi-rotors carrying bulky custom camera or sensor configurations.

Key Features

• Massive 25000mAh Energy Capacity: Delivers 570 Watt-hours of continuous power to significantly reduce battery swap intervals and maximize on-scene flight duration.

• Effective Internal Thermal Cooling: Integrated internal aluminum plates draw heat away from core cells into the matte black outer jacket, fighting cell degradation during extended hovering sessions.

• Laser-Welded Connections: Employs automated laser welding to eliminate the high resistance of traditional solder tabs, ensuring even discharging across all 6 cells under high loads.

• Authentic XT90S-F Anti-Spark Plug: Protects sensitive onboard ESCs and distribution boards by eliminating arcing sparks during battery insertion in the field.

• Flush Dual-Side Lead Design: Heavy-duty power leads and a JST-XHR-7P reverse balance lead emerge from opposing ends flush with the protective PVC jacket, ensuring an easy fit inside deep commercial battery trays.

Technical Specifications

• Brand: Ovonic (ROAM Commercial Drone Series)

• Chemistry: High-Voltage Lithium Polymer (LiHV)

• Configuration: 22.8V / 6S1P / 6 Cells

• Capacity: 25000mAh (570WH)

• Discharge Rate: 30C Continuous

• Net Weight (±100g): 2538g / 5.59 lbs

• Dimensions (±2mm): 208 x 92.5 x 65 mm / 8.19 x 3.64 x 2.56 inches (L x W x H)

• Connector Type: XT90S-F Anti-Spark Plug

• Balance Connector: JST-XHR-7P Reverse Plug

• Wire Gauge: 8 AWG Power Wire / 22 AWG Balance Wire

• Pack Structure: Internal Aluminum Cooling Plates + External PVC Shield

What's in the Box

• 1 x Ovonic ROAM 22.8V 25000mAh 30C 6S LiHV Battery Pack

• 1 x User Manual & Safety Guide

Charging & Safety Warnings

• LiHV Charger Profiling: Your smart balance charger must be explicitly set to "LiHV" mode with a cut-off voltage of 4.35V per cell. Charging on standard LiPo modes will cause incomplete charging.

• Operational Discharge Limit: To preserve long-term battery health and aircraft safety, configure your telemetry low-voltage alarms to trigger no lower than 3.3V per cell under load.

• Storage Requirements: If leaving the pack idle for more than 48 hours, discharge or charge it to a stable storage voltage of 3.80V–3.85V per cell and store it in a cool, dry place inside a fireproof containment box.
